Solar Power Solutions
for Cellular Industry
As the telecom and wireless industry grows, mobile network operators, tower companies, and wireless internet service providers are expanding infrastructure in remote areas with unreliable grid power or no grid power at all. The status quo solution for inconsistant and off-grid telecom infrastructure continues to be diesel generators, which come with high fuel and maintenance costs and carbon emissions. Sun-in-one turnkey containerized solar cell tower micro-grids provides a clean, reliable, affordable alternative to diesel generators for the telecom industry.
Introduction
Sun-In-One™’s telecom solar power systems are engineered with three to five days of battery storage compared to other companies that have only one day or less of battery storage. This ensures the Long-Term Life of your system’s battery storage and backup generator, thus substantially reducing future replacement or maintenance costs. Our solar systems are designed and built to be turn-key with full remote monitoring and control.
Our Containerized Solar Power Solutions for the Cellular Industry are engineered to run 100% on solar power. They are equipped with battery storage and a AC or DC generator as an additional backup system to guarantee service continuity. All systems can be grid-tied or completely off-grid. Our goal is to deliver service reliability and help you eliminate your maintenance/fuel expenses and obtain a good return on investment.
Our Cell Tower Systems Can Help You
Telecom companies can greatly reduce operating costs. We estimate that telecom companies spend 15 to 50% of operating cost on the energy needed to run cell tower. Solar installations with battery backups are more expensive to install upfront, but the yearly operational expenditure is far lower, recouping the investment in about two to four years. In the US, tax credits that are generated by purchasing this system.
Sun-In-One manufactures its system for all markets from Africa to the US and we build DC systems 24 and 48 volt and AC single and 3 Phase systems. Check out the full spec sheet, or Contact us for more information.
Key Features
Solar power systems design and engineered by Sun-In-One are manufactured to meet your needs these on figurations that include:
- Storage Control Systems with Remote Monitoring.
- Designed for 100% Renewable with Genset Backup.
- Hybrid Control System.
- Storage System with a Single Container 10 20 or 40 foot units.
- Deep Cycle Batteries Lithium Batteries or Lead Acid.
- Real time Reporting and Control Systems.
- Plug and Play Design.
- Reduced Fuel Consumption.
- DC 12, 24, 48 or -48V or AC Systems Available
- DC & AC Heating & Cooling systems are Available.
- Room enough for the Cell Tower equipment to go in our storage unit.
- Solar panel racking for smaller systems can be right on the containers.
- Speed on site installation is fast when unit is prewired and installed in a Container.
- The Durability of our Containers far exceed anyone else with our special paint that lowers that internal temperature of the Container in the summer by 4 degrees over a non treated unit.
- 2 inches of insulation to help reduce the climate control operating cost of the unit
- Active ventilation when the temperature is not extreme either high or low which lowers the operating cost of the system compared systems that are 100% AC and Heat pump run.
- External and internal Lighting and external and internal security cameras (available).
Warranty
- 5 year warranty on electronics, wiring and fixture.
- 20 years on mounting hardware and panel
Installation Tips
- Make sure your intended location for the solar panel sees no shade between 9 AM and 3 PM.
- When installing the panel, make sure it is facing solar south. South on Google Maps is solar south.
Benefits of SUNINONE Power Systems
Turnkey Telecom and Wi-Fi energy solutions for remote locations
Reduced Cost
A solar micro-grid supplies 24/7/365 energy at a lower cost than grid power extension or running a diesel generator for telecom towers.
Ideal for Remote Telecom Sites
We have a history in designing off grid remote systems and we are able to use our years of know of installing and manfacturing solar power with battery storage solutions in rural areas all over the world and have designed systems on all 7 continents.
Fast Installation
Sun-In-One Micro grid system is plug-and-play can be installed in a matter of days, keeping pace with the rapid expansion of rural telecom infrastructure.
Durable
With containerized energy storage, micro grid systems are fire resistant and built to withstand extreme weather with insulation and a special heat resistant coating.
Switch to Clean Energy
Replacing diesel generators with on-site solar power greatly reduces carbon emissions, helping telecom operators achieve their sustainability goals.
Reliable Power Supply
Our power systems integrate solar PV, battery storage, and generators, fuel cells and propane backup to guarantee a resilient, uninterrupted power supply even when the grid fails.

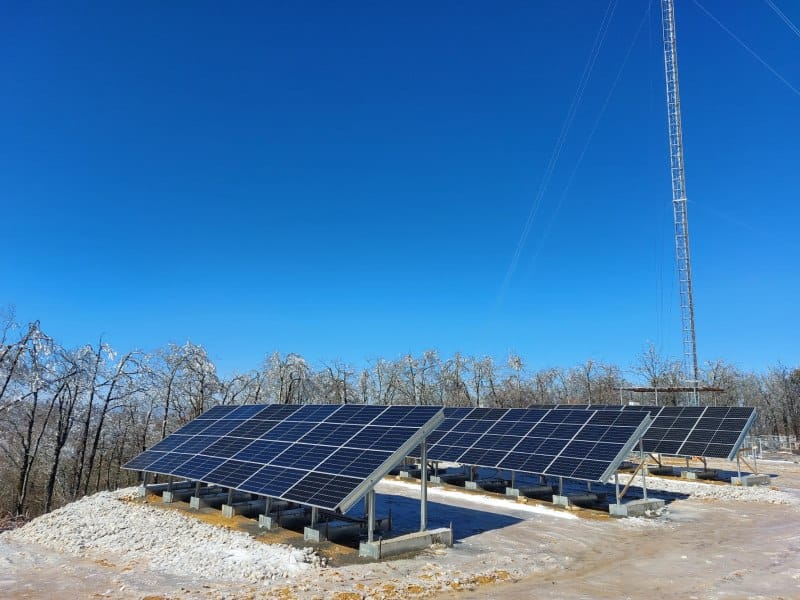

Gallery
Solar Zones
Our kits are designed for three-day autonomy. In order to do this, we design for the amount of hours of peak sunlight a certain region gets in a day. Use the map to determine which zone you are in, and include that information in the contact form. If you are not sure which zone you are in, we can help you figure that out.
How do know which system is right for your cell tower of Microwave tower?
We have designed our systems based on the zone location of your project. After you know the zone of your project you need to know what kind of power you need.
- What are your peak power needs for your highest hour of usage and your average load for a 24 hour period?
- What is your average Amps used per hour and what is the voltage you need?
This sets the size of your batteries and the size of the solar system.
Solar Power Unit for Cell Tower
select your zone
Solar Micro Grids for Cell Towers (Off-Grid and Grid-Tied) at 48 Volt | |||||||||||||||||||||||||||
System Design Amperage @ 48V (A/Hr) | 10 | 12 | 15 | 17 | 20.8
| 25
| 30
| 40
| 50
| 60
| 70
| 80
| 90
| 100
| 125
| 150
| 210
| ||||||||||
System Nominal kVA | 0.48 | 0.576 | 0.72 | 0.816 | 1.0
| 1.2
| 1.44
| 1.92
| 2.4
| 2.88
| 3.36
| 3.84
| 4.32
| 4.8
| 6
| 7.2
| 10.08
| ||||||||||
Total System Solar Power (Watts) @ 48V | 3.3 kW | 3.9 kW | 4.9 kW | 5.5 kW | 6.5 kW
| 7.8 kW
| 9.7 kW
| 12.9 kW
| 16.2 kW
| 19.5 kW
| 22.6 kW
| 25.8 kW
| 29.1 kW
| 32.3 kW
| 40.4 kW
| 45 kW
| 63 kW
| ||||||||||
System Design Backup (Days) | 3 | 3 | 3 | 3 | 3
| 3
| 3
| 3
| 3
| 3
| 3
| 3
| 3
| 3
| 3
| 3
| 3
| ||||||||||
Racking (Ground or Ballast/Pole/Container) | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C
| G or B/P/C
| G or B/P/C
| G or B/P/C
| G or B
| G or B
| G or B
| G or B
| G or B
| G or B
| G or B
| G or B
| G or B
| ||||||||||
| Customized Container | Y | Y | Y | Y | Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| ||||||||||
Customized Battery Box | N | N | N | N | N
| N
| N
| N
| N
| N
| N
| N
| N
| N
| N
| N
| N
| ||||||||||
Minimum LiO Battery Size (AH) | 800 | 1,000 | 1,200 | 1,400 | 1,600
| 2,100
| 2,400
| 3,200
| 4,000
| 4,800
| 5,600
| 6,400
| 7,200
| 8,000
| 9,600
| 11,900
| 16,700
| ||||||||||
Minimum AGM Battery Size (AH) | 1,100 | 1,300 | 1,700 | 1,900 | 2,200
| 2,700
| 3,300
| 4,400
| 5,400
| 6,500
| 7,600
| 8,700
| 9,800
| 10,800
| 13,500
| 16,200
| 22,680
| ||||||||||
Battery Monitor | Y | Y | Y | Y | Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| ||||||||||
Load Panel | Y | Y | Y | Y | Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| ||||||||||
| Inverter | Y | Y | Y | Y | Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| ||||||||||
| Charge Controller | Y | Y | Y | Y | Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| ||||||||||
| System Control Panel | Y | Y | Y | Y | Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| ||||||||||
| Communications | Y | Y | Y | Y | Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| ||||||||||
| Wireless Repeater for Backhauling | Y | Y | Y | Y | Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| ||||||||||
| Remote Monitoring System | Y | Y | Y | Y | Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| ||||||||||
| Generator Backup (60 Hz/50 Hz) | 11 kVA | 11 kVA | 11 kVA | 15 kVA | 15 kVA
| 15 kVA
| 15 kVA
| 15 kVA
| 15 kVA
| 15 kVA
| 15 kVA
| 15 kVA
| 15 kVA
| 15 kVA
| 15 kVA
| 15 kVA
| 15 kVA
| ||||||||||
| Generator Auto Start | Y | Y | Y | Y | Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| Y
| ||||||||||
Solar Micro Grids for Cell Towers (Off-Grid and Grid-Tied) at 48 Volt |
|||||||||||||||||||||||||||
|
System Design Amperage @ 48V (A/Hr) |
10 | 12 | 15 | 17 | 20.8 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 125 | 150 | 210 | ||||||||||
|
System Nominal kVA |
0.48 | 0.576 | 0.72 | 0.816 | 1.0 | 1.2 | 1.44 | 1.92 | 2.4 | 2.88 | 3.36 | 3.84 | 4.32 | 4.8 | 6 | 7.2 | 10.08 | ||||||||||
|
Total System Solar Power (Watts) @ 48V |
3.3 kW | 3.9 kW | 4.9 kW | 5.5 kW | 6.5 kW | 7.8 kW | 9.7 kW | 12.9 kW | 16.2 kW | 19.5 kW | 22.6 kW | 25.8 kW | 29.1 kW | 32.3 kW | 40.4 kW | 45 kW | 63 kW | ||||||||||
|
System Design Backup (Days) |
3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||||||||||
|
Racking (Ground or Ballast/Pole/Container) |
G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B | G or B | G or B | G or B | G or B | G or B | G or B | G or B | G or B | ||||||||||
| Customized Container | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
|
Customized Battery Box |
N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | ||||||||||
|
Minimum LiO Battery Size (AH) |
800 | 1,000 | 1,200 | 1,400 | 1,600 | 2,100 | 2,400 | 3,200 | 4,000 | 4,800 | 5,600 | 6,400 | 7,200 | 8,000 | 9,600 | 11,900 | 16,700 | ||||||||||
|
Minimum AGM Battery Size (AH) |
1,100 | 1,300 | 1,700 | 1,900 | 2,200 | 2,700 | 3,300 | 4,400 | 5,400 | 6,500 | 7,600 | 8,700 | 9,800 | 10,800 | 13,500 | 16,200 | 22,680 | ||||||||||
|
Battery Monitor |
Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
|
Load Panel |
Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Inverter | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Charge Controller | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| System Control Panel | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Communications | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Wireless Repeater for Backhauling | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Remote Monitoring System | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Generator Backup (60 Hz/50 Hz) | 11 kVA | 11 kVA | 11 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | ||||||||||
| Generator Auto Start | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
Solar Micro Grids for Cell Towers (Off-Grid and Grid-Tied) at 48 Volt |
|||||||||||||||||||||||||||
|
System Design Amperage @ 48V (A/Hr) |
10 | 12 | 15 | 17 | 20.8 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 125 | 150 | 210 | ||||||||||
|
System Nominal kVA |
0.48 | 0.576 | 0.72 | 0.816 | 1.0 | 1.2 | 1.44 | 1.92 | 2.4 | 2.88 | 3.36 | 3.84 | 4.32 | 4.8 | 6 | 7.2 | 10.08 | ||||||||||
|
Total System Solar Power (Watts) @ 48V |
3.3 kW | 3.9 kW | 4.9 kW | 5.5 kW | 6.5 kW | 7.8 kW | 9.7 kW | 12.9 kW | 16.2 kW | 19.5 kW | 22.6 kW | 25.8 kW | 29.1 kW | 32.3 kW | 40.4 kW | 45 kW | 63 kW | ||||||||||
|
System Design Backup (Days) |
3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||||||||||
|
Racking (Ground or Ballast/Pole/Container) |
G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B | G or B | G or B | G or B | G or B | G or B | G or B | G or B | G or B | ||||||||||
| Customized Container | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
|
Customized Battery Box |
N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | ||||||||||
|
Minimum LiO Battery Size (AH) |
800 | 1,000 | 1,200 | 1,400 | 1,600 | 2,100 | 2,400 | 3,200 | 4,000 | 4,800 | 5,600 | 6,400 | 7,200 | 8,000 | 9,600 | 11,900 | 16,700 | ||||||||||
|
Minimum AGM Battery Size (AH) |
1,100 | 1,300 | 1,700 | 1,900 | 2,200 | 2,700 | 3,300 | 4,400 | 5,400 | 6,500 | 7,600 | 8,700 | 9,800 | 10,800 | 13,500 | 16,200 | 22,680 | ||||||||||
|
Battery Monitor |
Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
|
Load Panel |
Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Inverter | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Charge Controller | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| System Control Panel | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Communications | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Wireless Repeater for Backhauling | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Remote Monitoring System | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Generator Backup (60 Hz/50 Hz) | 11 kVA | 11 kVA | 11 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | ||||||||||
| Generator Auto Start | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
Solar Micro Grids for Cell Towers (Off-Grid and Grid-Tied) at 48 Volt |
|||||||||||||||||||||||||||
|
System Design Amperage @ 48V (A/Hr) |
10 | 12 | 15 | 17 | 20.8 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 125 | 150 | 210 | ||||||||||
|
System Nominal kVA |
0.48 | 0.576 | 0.72 | 0.816 | 1.0 | 1.2 | 1.44 | 1.92 | 2.4 | 2.88 | 3.36 | 3.84 | 4.32 | 4.8 | 6 | 7.2 | 10.08 | ||||||||||
|
Total System Solar Power (Watts) @ 48V |
3.3 kW | 3.9 kW | 4.9 kW | 5.5 kW | 6.5 kW | 7.8 kW | 9.7 kW | 12.9 kW | 16.2 kW | 19.5 kW | 22.6 kW | 25.8 kW | 29.1 kW | 32.3 kW | 40.4 kW | 45 kW | 63 kW | ||||||||||
|
System Design Backup (Days) |
3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||||||||||
|
Racking (Ground or Ballast/Pole/Container) |
G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B | G or B | G or B | G or B | G or B | G or B | G or B | G or B | G or B | ||||||||||
| Customized Container | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
|
Customized Battery Box |
N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | ||||||||||
|
Minimum LiO Battery Size (AH) |
800 | 1,000 | 1,200 | 1,400 | 1,600 | 2,100 | 2,400 | 3,200 | 4,000 | 4,800 | 5,600 | 6,400 | 7,200 | 8,000 | 9,600 | 11,900 | 16,700 | ||||||||||
|
Minimum AGM Battery Size (AH) |
1,100 | 1,300 | 1,700 | 1,900 | 2,200 | 2,700 | 3,300 | 4,400 | 5,400 | 6,500 | 7,600 | 8,700 | 9,800 | 10,800 | 13,500 | 16,200 | 22,680 | ||||||||||
|
Battery Monitor |
Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
|
Load Panel |
Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Inverter | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Charge Controller | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| System Control Panel | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Communications | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Wireless Repeater for Backhauling | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Remote Monitoring System | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Generator Backup (60 Hz/50 Hz) | 11 kVA | 11 kVA | 11 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | ||||||||||
| Generator Auto Start | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
Solar Micro Grids for Cell Towers (Off-Grid and Grid-Tied) at 48 Volt |
|||||||||||||||||||||||||||
|
System Design Amperage @ 48V (A/Hr) |
10 | 12 | 15 | 17 | 20.8 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 125 | 150 | 210 | ||||||||||
|
System Nominal kVA |
0.48 | 0.576 | 0.72 | 0.816 | 1.0 | 1.2 | 1.44 | 1.92 | 2.4 | 2.88 | 3.36 | 3.84 | 4.32 | 4.8 | 6 | 7.2 | 10.08 | ||||||||||
|
Total System Solar Power (Watts) @ 48V |
3.3 kW | 3.9 kW | 4.9 kW | 5.5 kW | 6.5 kW | 7.8 kW | 9.7 kW | 12.9 kW | 16.2 kW | 19.5 kW | 22.6 kW | 25.8 kW | 29.1 kW | 32.3 kW | 40.4 kW | 45 kW | 63 kW | ||||||||||
|
System Design Backup (Days) |
3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||||||||||
|
Racking (Ground or Ballast/Pole/Container) |
G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B/P/C | G or B | G or B | G or B | G or B | G or B | G or B | G or B | G or B | G or B | ||||||||||
| Customized Container | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
|
Customized Battery Box |
N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | ||||||||||
|
Minimum LiO Battery Size (AH) |
800 | 1,000 | 1,200 | 1,400 | 1,600 | 2,100 | 2,400 | 3,200 | 4,000 | 4,800 | 5,600 | 6,400 | 7,200 | 8,000 | 9,600 | 11,900 | 16,700 | ||||||||||
|
Minimum AGM Battery Size (AH) |
1,100 | 1,300 | 1,700 | 1,900 | 2,200 | 2,700 | 3,300 | 4,400 | 5,400 | 6,500 | 7,600 | 8,700 | 9,800 | 10,800 | 13,500 | 16,200 | 22,680 | ||||||||||
|
Battery Monitor |
Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
|
Load Panel |
Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Inverter | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Charge Controller | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| System Control Panel | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Communications | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Wireless Repeater for Backhauling | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Remote Monitoring System | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
| Generator Backup (60 Hz/50 Hz) | 11 kVA | 11 kVA | 11 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | 15 kVA | ||||||||||
| Generator Auto Start | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||||||||
